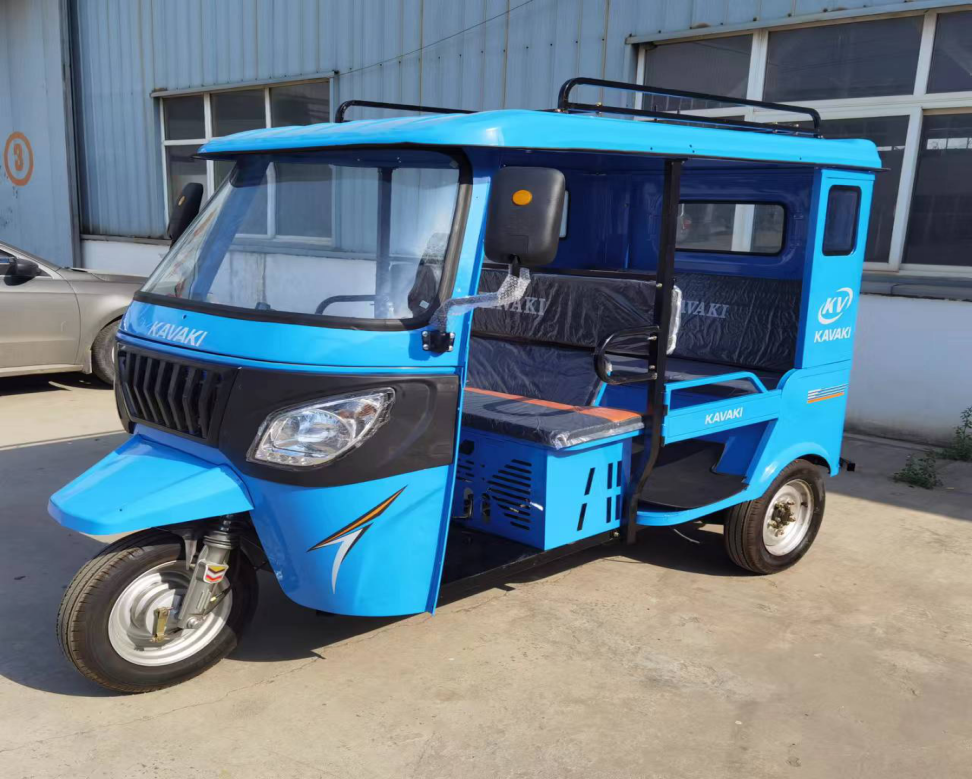

S2-A single-row coach

Share to:

S2-A single-row coach

Scan the QR code

Inquire

Product Description

1. Parameter dimensions: 2760*1350*1910 (including luggage rack height)
2. Motor model: 60V/3000W
3. Controller: 60V/3000W 3-phase 24-tube
3. Maximum power: 10000W
3. Front shock absorber model: 43 hydraulic single-arm outer spring
4. Front and rear wheel model: 400-12 (three wheels interchangeable)
5. Brake status: Front drum brake, rear oil brake (front disc brake optional)
6. Radio: Supports USB
7. Fan: 12V
8. Iron ceiling: 1850*1350*150
9. Front seats: 1150*350
10. Middle seat: 760*260
11. Rear seats: 1180*350
12. Distance between rear seats and front seats: 620
13. Luggage rack: 950*1350
14. Spare tire: 400-12
15. Sticker wrap: Three sides
16. Side window glass size: 280*220
17. Rear window glass size: 540*240
18. Rain curtain: Transparent plastic
19. Foot pedal cover: Leather
20. Design speed: 50 km/h
21. Climbing angle: ≤20 degrees for 1 km
23. Range: 80 km
24. Net weight: 420KG
25. Load capacity: 500KG
26. Wheelbase: 2000MM
27. Track width: 1160MM
28. Ground clearance: 330MM
29. Rear axle status: 220 oil brake (semi-floating)
30. Instrument: Mechanical
31. Rear shock absorber: Spring
32. Rear suspension: Trailing arm, connecting rod
SKD iron frame packaging + 600 yuan. Iron ceiling, folding seats, rear side window enclosure, electric fan, rain curtains (left and right), luggage rack, passenger grab handles, radio with USB interface, foot pedal covers
